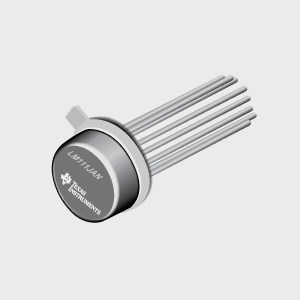

LM111JAN(ACTIVE) Voltage Comparator
- 所属分类:放大器和线性器件
- The LM111 is a voltage comparator that has input currents nearly a thousand times lower than devices such as the LM106 or LM710. It is also designed to operate over a wider range of supply voltages: from standard ±15V op amp supplies down to the single 5V supply used for IC logic. The output is compatible with RTL, DTL and TTL as well as MOS circuits. Further, it can drive lamps or relays, switchi
- 订购热线:62623528/ 400-011-6810
The LM111 is a voltage comparator that has input currents nearly a thousand times lower than devices such as the LM106 or LM710. It is also designed to operate over a wider range of supply voltages: from standard ±15V op amp supplies down to the single 5V supply used for IC logic. The output is compatible with RTL, DTL and TTL as well as MOS circuits. Further, it can drive lamps or relays, switching voltages up to 50V at currents as high as 50 mA.
Both the inputs and the outputs of the LM111 can be isolated from system ground, and the output can drive loads referred to ground, the positive supply or the negative supply. Offset balancing and strobe capability are provided and outputs can be wire OR’ed. Although slower than the LM106 and LM710 (200 ns response time vs 40 ns) the device is also much less prone to spurious oscillations. The LM111 has the same pin configuration as the LM106 and LM710.
Operates from single 5V supply
Input current: 200 nA max. over temperature
Offset current: 20 nA max. over temperature
Differential input voltage range: ±30V
Power consumption: 135 mW at ±15V
Power supply voltage, single 5V to ±15V
Offset voltage null capability
Strobe capability
LM111JAN | LM111JAN-SP | |
---|---|---|
Iq per channel (Max) (mA) | 6 | 6 |
Vio (25C) (Max) (mV) | 3 | 3 |
VICR (Min) (V) | 0.5 | 0.5 |
VICR (Max) (V) | 34 | 34 |
Output Type | Open Collector,Open Drain | Open Collector,Open Drain |
tRESP Low - to - High (us) | 0.2 | 0.2 |
Vs (Min) (V) | 5 | 5 |
Vs (Max) (V) | 36 | 36 |
Pin/Package | 8TO-99 | |
Input Bias Current (+/-) (Max) (nA) | 100 | 100 |
Operating Temperature Range (C) | -55 to 125 | |
Number of Channels | 1 | 1 |
Special Features | Vos Adj Pin, Strobe | Vos Adj Pin, Strobe |
