The DAC1220 is a 20-bit digital-to-analog (D/A) converter offering 20-bit monotonic performance over the specified temperature range. It utilizes delta-sigma technology to achieve inherently linear performance in a small package at very low power. The resolution of the device can be programmed to 20 bits for Full-Scale, settling to 0.003% within 15ms typical, or 16 bits for Full-Scale, settling to 0.012% within 2ms max. The output range is two times the external reference voltage. On-chip calibration circuitry dramatically reduces low offset and gain errors.
  The DAC1220 features a synchronous serial interface; in single-converter applications, the serial interface can be accomplished with just two wires, allowing low-cost isolation. For multiple converters, a CS signal allows for selection of the appropriate D/A converter.

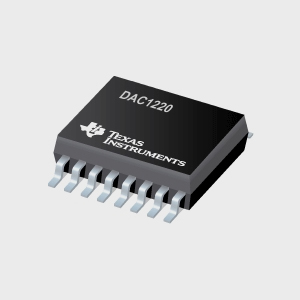

  The DAC1220 has been designed for closed-loop control applications in the industrial process control market and high-resolution applications in the test and measurement market. It is also ideal for remote applications, battery-powered instruments, and isolated systems. The DAC1220 is available in an SSOP-16 package.

  20-Bit Monotonicity Ensured Over –40°C to +85°C
  Low Power: 2.5mW
  Voltage Output
  Settling Time: 2ms to 0.012%
  Maximum Linearity Error: ±0.0015%
  On-Chip Calibration
  APPLICATIONS
  -Process Control
  -ATE Pin Electronics
  -Closed-Loop Servo Control
  -Smart Transmitters
  -Portable Instruments
