The DAC9881 is an 18-bit, single-channel, voltage-output digital-to-analog converter (DAC). It features 18-bit monotonicity, excellent linearity, very low-noise, and fast settling time. The on-chip precision output amplifier allows rail-to-rail output swing to be achieved over the full supply range of 2.7V to 5.5V.
  The device supports a standard SPI serial interface capable of operating with input data clock frequencies up to 50MHz. The DAC9881 requires an external reference voltage to set the output range of the DAC channel. A programmable power-on reset circuit is also incorporated into the device to ensure that the DAC output powers up at zero-scale or midscale, and remains there until a valid write command.
  Additionally, the DAC9881 has the capability to function in either unipolar straight binary or twos complement mode. The DAC9881 provides low-power operation. To further save energy, power-down mode can be achieved by accessing the PDN pin, thereby reducing the current consumption to 25µA at 5V. Power consumption is 4mW at 5V, reducing to 125µW in power-down mode.

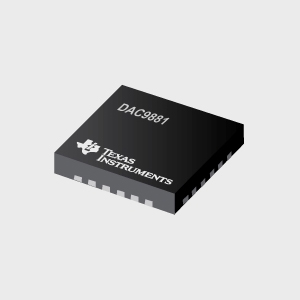

  The DAC9881 is available in a 4mm × 4mm QFN-24 package with a specified temperature range of -40°C to +105°C.

  18-Bit Monotonic Over Temperature Range
  Relative Accuracy: ±2LSB Max
  Low-Noise: 24nV/Hz
  Fast Settling: 5µs
  On-Chip Output Buffer Amplifier with Rail-to-Rail Operation
  Single Power Supply: +2.7V to +5.5V
  DAC Loading Control
  Selectable Power-On Reset to Zero-Scale or Midscale
  Power-Down Mode
  Unipolar Straight Binary or Twos Complement Input Mode
  Fast SPI Interface with Schmitt-Triggered Inputs: up to 50MHz, 1.8V/3V/5V Logic
  Small Package: QFN-24, 4mm × 4mm
  APPLICATIONS
  -Automatic Test Equipment
  -Precision Instrumentation
  -Industrial Control
  -Data Acquisition Systems
