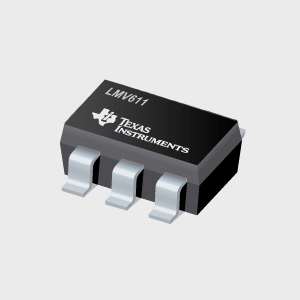

LMV611 （ACTIVE）低电压、低功耗RRIO通用放大器
- 所属分类：放大器和线性器件
- The LMV611/LMV612/LMV614 are single, dual, and quad low voltage, low power Operational Amplifiers. They are designed specifically for low voltage general purpose applications. Other important product characteristics are, rail to-rail input/output, low supply voltage of 1.8V and wide temperature range. The LMV611/LMV612/LMV614 input common mode extends 200mV beyond the supplies and the output can
- 订购热线：62623528/ 400-011-6810
-
The LMV611/LMV612/LMV614 are single, dual, and quad low voltage, low power Operational Amplifiers. They are designed specifically for low voltage general purpose applications. Other important product characteristics are, rail to-rail input/output, low supply voltage of 1.8V and wide temperature range. The LMV611/LMV612/LMV614 input common mode extends 200mV beyond the supplies and the output can swing rail-to-rail unloaded and within 30mV with 2kohm load at 1.8V supply. The LMV611/2/4 achieves a gain bandwidth of 1.4MHz while drawing 100 uA (typ) quiescent current.
The industrial-plus temperature range of −40°C to 125°C allows the LMV611/LMV612/LMV614 to accommodate a broad range of extended environment applications.
The LMV611 is offered in the tiny 5-Pin SC70 package, the LMV612 in space saving 8-Pin MSOP and SOIC, and the LMV614 in 14-Pin TSSOP and SOIC. These small package amplifiers offer an ideal solution for applications requiring minimum PCB footprint. Applications with area constrained PC board requirements include portable and battery operated electronics.
（Typical 1.8V Supply Values; Unless Otherwise Noted）
-Guaranteed 1.8V, 2.7V and 5V specifications
-Output swing
|
w/600? load |
80mV from rail |
|
w/2k? load |
30mV from rail |
|
VCM |
200mV beyond rails |
|
Supply current (per channel) |
100μA |
|
Gain bandwidth product |
1.4MHz |
|
Maximum VOS |
4.0mV |
|
Temperature range |
−40°C to 125°C |
Consumer communication
Consumer computing
PDAs
Audio pre-amp
Portable/battery-powered electronic equipment
Supply current monitoring
Battery monitoring
| LMV611 | LMV612 | LMV614 | |
|---|---|---|---|
| Iq per channel (Max) (mA) | 0.21 | 0.21 | 0.21 |
| Vio (25C) (Max) (mV) | 4 | 4 | 4 |
| Vn at 1kHz (Typ) (nV/rtHz) | 50 | 50 | 50 |
| IIB (Max) (pA) | 35000 | 35000 | 35000 |
| Slew Rate (Typ) (V/us) | 0.42 | 0.42 | 0.42 |
| GBW (Typ) (MHz) | 1.5 | 1.5 | 1.5 |
| Rail-Rail | In/Out | In/Out | In/Out |
| Number of Channels | 1 | 2 | 4 |
| Pin/Package | 5SC70, 5SOT-23 | 8SOIC, 8VSSOP | 14SOIC, 14TSSOP |
| Total Supply Voltage (Min) (+5V=5, +/-5V=10) | 1.8 | 1.8 | 1.8 |
| Total Supply Voltage (Max) (+5V=5, +/-5V=10) | 5.5 | 5.5 | 5.5 |
| Rating | Catalog | Catalog | Catalog |
| Approx. Price (US$) | 0.22 | 1ku | 0.25 | 1ku | 0.30 | 1ku |
