The THS3202 is a dual current-feedback amplifier developed with BiCOM-II technology. Designed for low distortion with a high slew rate of 9000 V/µs, the THS320x family is ideally suited for applications driving loads sensitive to distortion at high frequencies.
  The THS3202 provides well-regulated ac performance characteristics with power supplies ranging from single-supply 6.6-V operation up to a 15-V supply. The high unity-gain bandwidth of up to 2 GHz is a major contributor to the excellent distortion performance. The THS3202 offers an output current drive of ±115 mA and a low differential gain and phase error that make it suitable for applications such as video line drivers.

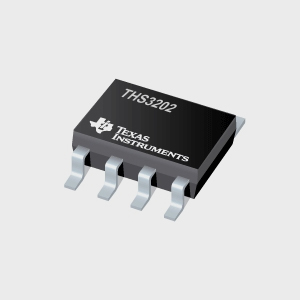

  The THS3202 is available in an SOIC-8, an MSOP-8, and an MSOP-8 with PowerPAD packages.

  Unity-Gain Bandwidth: 2 GHz
  High Slew Rate: 9000 V/µs
  High Output Current: ±115 mA into 20  RL
  Power-Supply Voltage Range: 6.6 V to 15 V
  APPLICATIONS
  -High-Speed Signal Processing
  -Test and Measurement Systems
  -High-Voltage ADC Preamplifier
  -RF and IF Amplifier Stages
  -Professional Video

  电池供电仪器：
  -消费类应用、工业应用、医疗应用
  -笔记本电脑、便携式媒体播放器
  传感器信号调节：
  -回路供电类应用
  -笔记本电脑、便携式媒体播放器
  无线传感器：
  -住所安全
  -远程感测
  -无线仪表
  All trademarks are the property of their respective owners.
